| Specification | ARJUN Plus V 1400 |
| Axis Travel | |
| X-Travel | 1400mm | `
| Y-Travel | 800mm |
| Z-Travel | 700mm |
| Spindle Nose to Table Surface | 150 – 850mm |
| Spindle Center to Sliding Cover Face | 960mm |
| Work Table | |
| Table Surface Dimension (X, Y) | 1600 x 800mm |
| T-Slot Dimension/ No./ Pitch | 18mmx5x125mm |
| Floor to Table Top | 1100mm |
| Maximum Table Weight | 1500 kg |
| Spindle | |
| Spindle Motor Power | 11/15 Kw |
| Spindle Speed | 8,000 (10,000 opt.) |
| Spindle Taper | BBT #40 |
| Axis Feeds | |
| Rapid Traverse – X/Y/Z | 36/36/24 m / minute |
| Rated Cutting Feedrate – X/Y/Z | 10 m/min. |
| Axis Drive Motor Power – X/Y/Z | 3/4.5/4.5 Kw |
| Accuracy | |
| Positioning Accuracy | 0.01mm |
| Repeatability | 0.006 |
| Autometic Tool Changer (ATC) | |
| Tool Capacity | 24 Nos. |
| Tool Change Time (Tool to Tool) | 2.5Sec |
| Max. Tool Dia. (with Adj Tool) | 75mm |
| Max. Tool Dia. (without Adj Tool) | 150mm |
| Maximum Tool Length | 250mm |
| Maximum Tool Weight | 8kg |
| Other Specifications | |
| Air | 6Kg/cm2 |
| Connected Load | 25Kva |

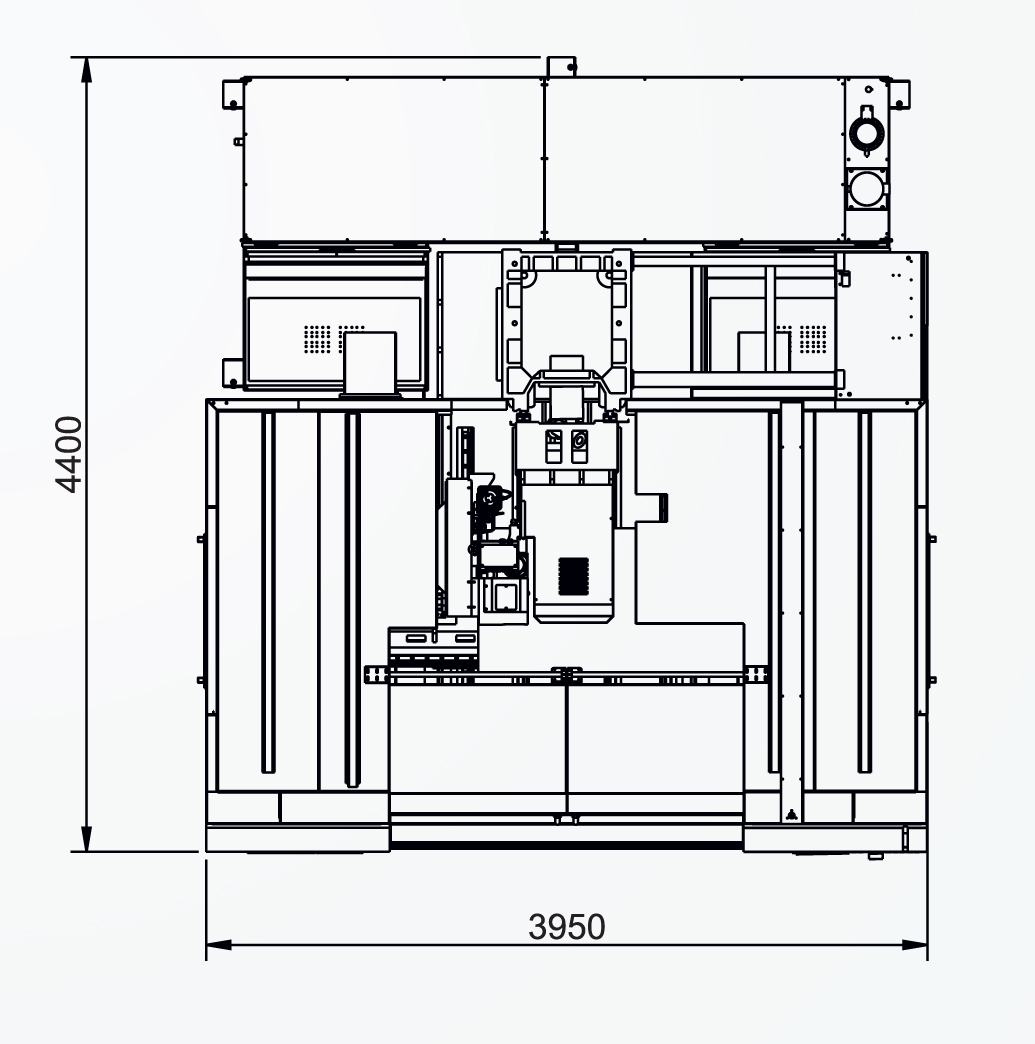

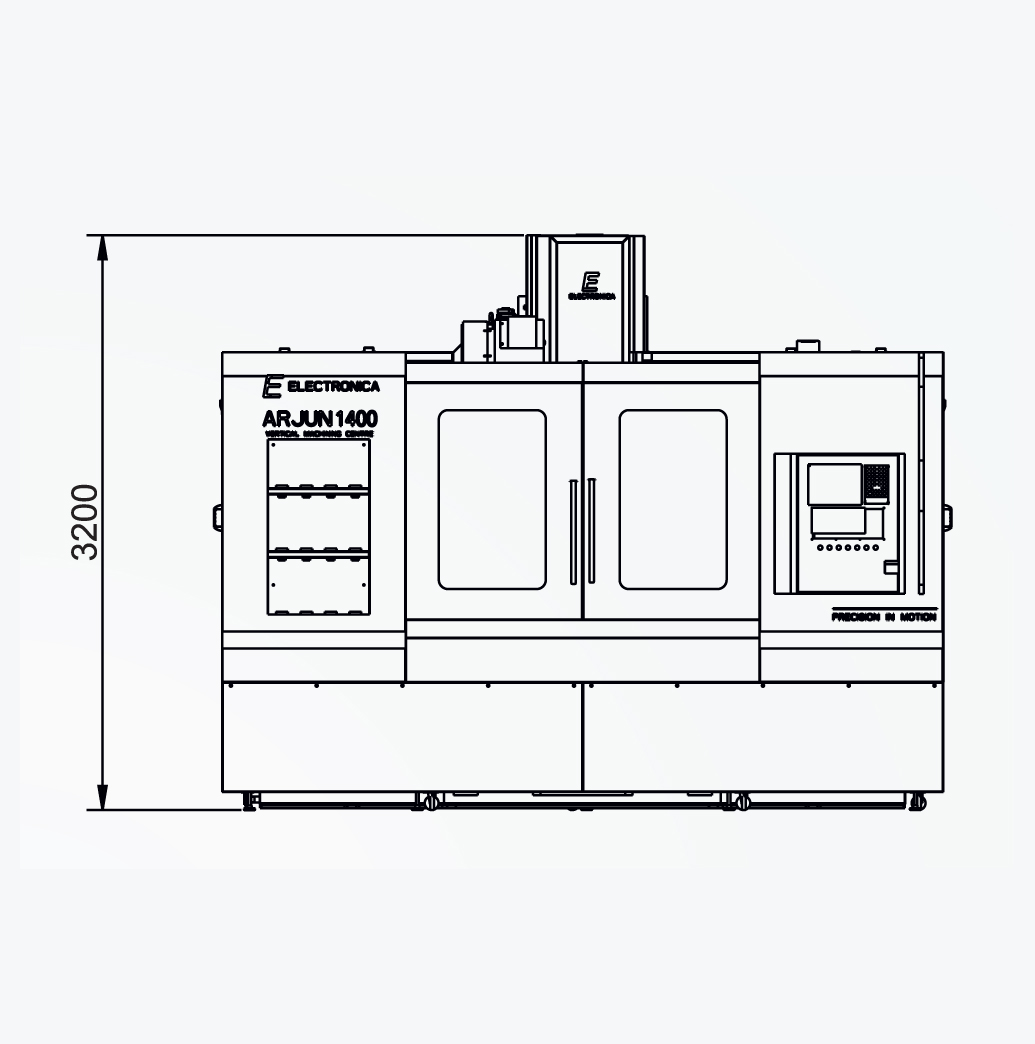

| Floor space (L x W x H) | 3950x4400x3200mm |
| Machine Weight | 11000kg |
