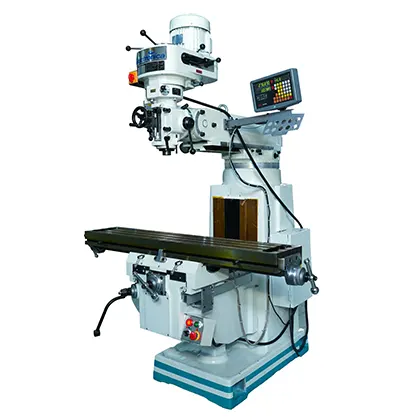

Turret Milling Machine – EM4S

Features

  • Duel Speed Spindle Motor
  • Large Table
  • Hardened Table Surface
  • Extended X Axis Stroke
  • Robust Construction

Standard Accessories

  • Rubber cover for front & back
  • Manual draw bolt
  • Tool box with tool
  • Halogen work light
  • Set of collets
  • Clamping kit
  • Digital readout for x/y axes
  • Machine vice 6 inch

Optional Accessories

  • POWER FEED FOR ‘X’ AXIS
  • COLLANT SYSTEM
  • CHIP TRAY
Table Size254 x 1370mm (10”x54”)
T-solt (WxNOxD)16x3x65mm
Travel for XYZ950x400x400mm (37.4”x15.7”x15.7”)
Spindle Quill Travel127mm (5”)
Ram Travel600 (300+300)mm
Spindle Motor3HP
Spindle TaperR8
Type of Guide WaysX Z “V”, Y Flat
Change of Speed16 Step Speed
Spindle Speed R.P.M.66-4540 RPM
0 0
Headstock Swivel & InclineR & L90 F & R 450
Machine Weight@1200kg
