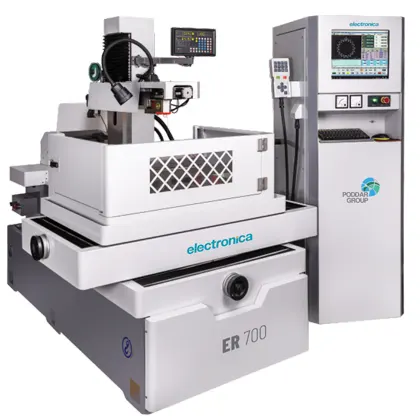

Ezeewin - ER Series

Ezeewin – ER Series

FEATURES :

Indigenous Products
Max. cutting speed : 100 mm2 /min.
Best surface finish : 1.2 µ Ra
Compact footprint
ePulse technology
Windows bases O.S.
Online program editing
Prejog function
Part programming software ELCAM

CONTROLLER :

WINDOWS Based OEM Controller
WINDOWS Based Offline Software ELCAM for programing
In-built processing parameters for machining
Auto STOP on wire break & Program end
dxf in facility for profile generation through ELCAM
Line By Line Program line display during running
Online Program Editor
Dry Spark function
PREJOG Function
Stepper Servo for X.Y.U.V.
Backlash Compensation
15 Colour LCD
USB, Keyboard and Mouse
CNC Auto-program and control functions
Manual Jogging through controller
Edge find, Center find, 3 Point CF

Specification	Unit	ER300	ER500	ER700	ER1000
Work Table Size	mm	520 X 340	740 X 500	840 X 600	1180 X 770
XY table traverse	mm	320 X 250	450 X 350	550 X 450	800 X 630
Maximum work piece height	mm	300	400	600	800
Maximum work piece weight	kg	200	300	400	1000
Max taper cutting angle		30 /80 mm	30 /80 mm	30 /80 mm	30 /80 mm
Wire Diameter (Molywire	mm	0.12 ~ 0.18	0.12 ~ 0.18	0.12 ~ 0.18	0.12 ~ 0.18
Machine Weight	Kgs	1200	1500	1700	2500
Machine Dimensions	Mtr	1.48×1.0x1.4	1.6×1.27×1.7	1.7×1.43×1.7	2.2×1.98×1.9

UNIVERSAL PARAMETERS :

2 Max. Cutting Speed (mm /min) : 100
Wire diameter (mm) : 0.18 (Molybdenum)
Wire Guide Frame : adjustable
Max. working current (A) : 6
Rated Power (KVA) Screw : 3
Guide way : : High precision ball screw Linear guide way
Best surface finish : 1.2 ~ 1.5 µ Ra

SYSTEM CONFIGURATION :

Operation Platform : Windows XP
EMS Memory : 1G
Fixed Disk : 160G
15 liquid crystal display (LCD)
USB, Keyboard and Mouse
CNC Auto-program and control functions
