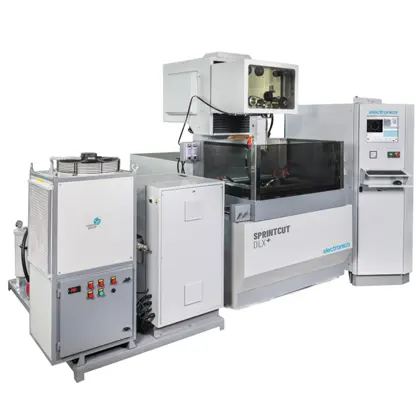

Spintcut DLX Plus

Advantages

  • ELCAM – windows-based  powerful part  programming software
  • Max. cutting speed: 170 mm2  per min.
  • Best surface  finish: 0.8 μRa
  • 16-step programmable flushing
  • 15 inches LCD screen
  • Semi-automatic wire threading system (optional) **
  • 4 1/2 Axis control (Axis on display)
  • Direct Coupled AC servo motor (X, Y, u, v)
  • Long life mineral bed filtration

Independent X, Y, u, v control

  • Material : HcHcr (steel)
  • Height : 70 mm
  • No. of cuts : 3 (1 rough + 2 trimcut)
  • Machining time : 4 hr. 50 min
  • Surface finish : 0.8 to 1.0 μ Ra


Helical cutting

  • Material : HcHcr (steel)
  • Height : 50mm
  • No. of cuts : 1+2
  • Machining time : 3hr. 30 min
  • Surface finish : 0.8 to 1.0 μ Ra

Technical Specifications

Machine ToolSprintcut DLX Plus
Main axes traverse (X, Y)600 x 400 mm
Aux. axes traverse (u, v)120 x 120 mm
table size900 x 580 mm
Max. taper angle± 30˚/50 mm
Max. work piece height350 mm
Max. work piece weight1000 kg
Resolution0.0005 mm
Max. JOG speed900 mm/min.
Max. wire spool capacity8 kg (up to DIN 160 / P5)
Wire electrode diameter0.25 mm (std.) 0.15, 0.20 mm (opt.)
Pulse Generator
Pulse peak voltage1step
CNC controllerTurbo
Controlled axesX, Y, u, v Simulaneous
InterpolationLinear & circular
Least input increment0.001 mm
Least command input (X, Y, u, v)0.0005 mm
Max. programmable dim (X, Y, u, v)± 99999.999 mm
Input power supply“3 Phase, AC, 415 V, 50Hz
Connected load10 KVA
Average power consumption6 to 7 KVA

*Alternate power supply rating available on request
