W Series - Ecocut

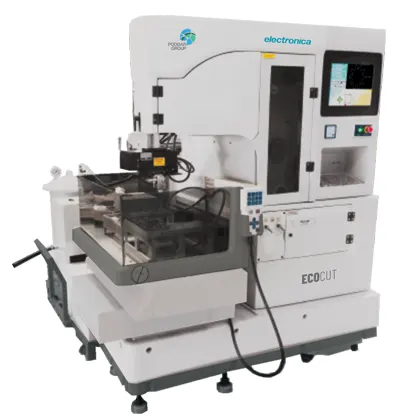

W Series – Ecocut

Features

USB port for program transfer
Integral design with compact footprint
Max. cutting speed:
– 70 mm²/min. [With Ø 0.25 special (soft) Brass wire on 50 mm thick HcHcr (Steel) workpiece]
– 60 mm²/min. [With Ø 0.25 plain Brass wire (Bravocut plus) on 50 mm thick HcHcr (Steel) workpiece]
Best surface finish: 1.2 μ Ra
Taper : ± 5⁰/100 mm
Hand-held remote control
ePulse technology
Windows based O.S.

CNC Pulse Generator
ELPULS-15

Upgraded EMT 90W controller
Colour LCD display
e-code for technology parameter
On-line program editor
USB 2.0 for data transfer
PreJOG function (for X, Y axes)
2D graphic simulation of wire path
Windows based O.S.

e Pulse Advantages

Stable machining and better performance in difficult machining conditions such as

– Flushing nozzle away from the workpiece
– Stacked workpieces
Minimum operator intervention

ELCAM

Powerful part programing software

Windows-based editor (more flexibility in operation)
Automatic installation facility
Automatic Start & End block generation at appropriate blocks in NC program
Automatic tangential Entry & Exit
DXF interface

Technical Specifications

Machine Tool	Ecocut
Max. table size	370 x 600 mm
Max, work piece height	200 mm
Max, work piece weight	300 kg
Main table traverse (X, Y)	250, 350 mm
Auxiliary table traverse (u, v)	30, 30 mm
Max, taper cutting angle	±5⁰/100 mm
Max. wire spool capacity	6 kg
Dry run speed	80 mm/min.
Wire diameter	0.25 mm (standard) 0.2 mm (optional)

Generator	ELPULS – 15
Display	Colour LCD
Min. input command	0.001 mm
Interpolation function	Linear & Circular
Simultaneously controlled axes	X, Y, u, v
Min. resolution for X,Y,u, v	0.001 mm
Data Input/Output	>USB 2.0 >Keyboard >RS232C Isolated serial interface
Input power supply	3 phase, AC 415 V*, 50 Hz
Connected load	3 kVA
Average power consumption	1.3 to 2.3 kVA

Dielectric Unit
Dielectric fluid	Deionised water
Tank capacity	140 Litres
Paper filter	10 μ Single cartridge
Optional Mineral Filtration System

*Alternate voltage ratings available on request
