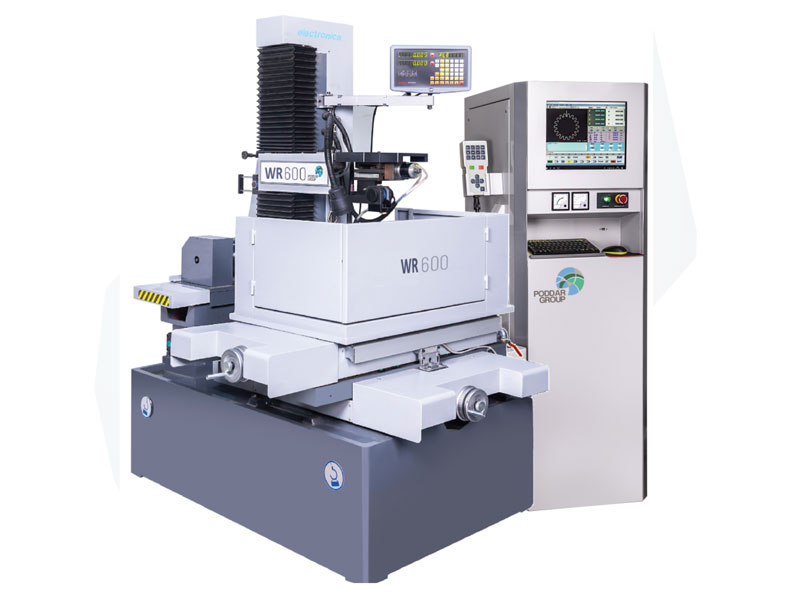

Ezeewin WR Series Manufacturer

Ezeewin – WR Series

Features :

  • Manual Jogging through Controller
  • Edge find, Center find 3 point
  • Complex Programming
  • Remote Control Unit (RCU)
  • Pitch error and Backlash Compensation
  • X, Y Axis AC Servo option available**
  • Max. cutting speed : 100 mm /min.
  • Best surface finish : 1.4 ~1.6 μ Ra
  • Windows based OEM controller
  • Online program editing
  • Prejog function
  • Part programming software “ELCAM”
  • Special Circuit for Aluminium Cutting (optional)

Low Running Cost. Optimised Features.

Machine Specifications WR 300 WR 600 WR 700 WR 800 WR 1000 WR 1100 WR 1200
X,Y Axis Travel (mm) 250 x 350 350 x 450 450 x 550 550 x 630 630 x 800 800 x 1000 1100 x 1500
Worktable Size (WxD mm) 320 x 450 450 x 625 550 x 725 650 x 825 730 x 980 985 x 1200 1200 x 1600
Job Admit (mm) 300 500 500 600 800 800 800
Z axis Manual Motorised Motorised Motorised Motorised Motorised Motorised
Max. Workpiece Weight (Kg) 250 400 500 700 1000 1500 2000
Max. Taper Angle (Deg/mm) ± 3° /80 ± 3° /80 ± 3° /80 ± 3° /80 ± 3° /80 ± 3° /80 ± 3° /80
Wire Diameter Range (mm) Molywire 0.12 ~ 0.18 mm 0.12 ~ 0.18 mm 0.12 ~ 0.18 mm 0.12 ~ 0.18 mm 0.12 ~ 0.18 mm 0.12 ~ 0.18 mm 0.12 ~ 0.18 mm
Auto Wire Tension YES YES YES YES YES YES YES
Wire guide system YES YES YES YES YES YES YES
Best Surface Finish (uRa) <= 1.4 <= 1.4 <= 1.4 <= 1.4 <= 1.4 <= 1.4 <= 1.4
Max. Cu􀀿ng Speed (mm/min) >= 100 >= 100 >= 100 >= 100 >= 100 >= 100 >= 100
Machine Weight (Kg) 800 1050 1200 1750 2200 2800 3200
Foot Print (WxDxH mm) 1480x1010x1400 1600x1270x1700 1700x1430x1700 2000x1750x2000 2200x1980x1900 2500x2100x2000 3000x2550x2300
Options
Taper Angle 30 deg /80 mm NO NO YES YES YES YES YES
Taper Angle 60,90 deg/80 mm NO NO NO YES YES YES YES
Job Admit 1000 mm NO NO NO NO NO YES YES
Max. Job Loading 2500 kg NO NO NO NO NO YES YES

Controller :

  • In-built processing parameters for machining
  • Auto STOP on wire break & Program end
  • dxf in facility for profile generation through ELCAM
  • Line By Line Program line display during running
  • Dry Spark function
  • CNC Auto-program and control functions

Filter Unit :

Dielectric MediaD.M. Water with Special
coolant/Paste
Filtration MediaPaper filtration
Dielectric Storage Capacity (Ltrs.)70

Control Unit :

CNC Controller4 Axis Simultaneous with Software
Program Memory2 GB
Min. Command Input (mm)0.001
InterpolationLinear, Circular
Input Power Supply415 VAC, 3 ph, 50 Hz
Connected Load (KVA)2.5
Average Power Consumption (KVA)2
Discharge ModeRough/Skim Cut
